1,000 Ton Used Komatsu Straight Side Presses For Sale

supercharger4me — Wed, 16 Mar 2016 19:32:55 +0000

Used Komatsu 1000 Ton Single-Action Straight-Side Presses For Sale

(5) available
Model: S4-1000-144-90 [New in 1980]
Capacity: 1000 Tons
Bed Area: 144″ x 90″
Slide Area: 144″ x 90″
Stroke: 42”
Shut Height: 92″ from bed
Die Height: 75″ from bolster
Adjustment: 24″
Speed: 20 SPM (continuous 16 SPM single stroke)
Equipped with: Cushions
Cushion Capacity: 120 Tons @ 80 PSI
Cushion Stroke: 7.5″ working
Front Moving Bolster

Click Here For Updates on Machines & Equipment As They Become Available

1000 Ton Komatsu Straight Side Stamping Press For Sale

1,600 Ton Capacity Verson Straight Side Press For Sale 1500 Ton – SOLD

Dev — Wed, 02 Mar 2016 19:37:22 +0000

1,600 Ton Capacity Verson Straight Side Press For Sale (great for 1500 Ton needs too)

Model: T-S2-1600-180-66
Year: New 1958
Capacity: 1600 Tons
Bed Area: 180” x 66”
Stroke: 18”
Shut Height: 41”
Slide Adjustment: 12” Motorized
Slide Surface Area: 180” x 66”
Speed: 16 SPM
Windows: 57” Wide

Click Here For Updates on Machines & Equipment As They Become Available

1,000 Ton Capacity Verson Straight Side Mechanical Press For Sale

Dev — Wed, 02 Mar 2016 19:18:36 +0000

1,000 Ton Capacity Verson Straight Side Mechanical Press

Model: TS2-1000-206-48
Year: New in 1982
Capacity: 1000 Tons
Bed Area: 206” x 48”
Stroke: 16”
Shut Height: 63”
Slide Adjustment: 8”
Slide Surface Area: 206” x 48”
Speed: 20 to 30 SPM
Windows: 80” Wide

Notes:

Littell Feed Line – Zig Zag Feeder
Coil Capacity: 40,000#
Stock Thickness: .128”
Stock Width: 36.5”

Click Here For Updates on Machines & Equipment As They Become Available

1,000 Ton Danly Single-Action Press For Sale

Dev — Mon, 22 Jun 2015 20:12:13 +0000

1,000 Ton Danly Single-Action Press For Sale

Year: 1985
Model: SE4-1000-144-84
Capacity: 1,000 Tons
Bed Area: 144″ x 84″
Slide Area: 144″ x 84″
Stroke: 36″
Shut Height: 76″
Slide Adjustment: 6″
Speed: 8-20 SPM (Variable)
Equipped With: Dual-side moving bolsters, full tonnage micro inch drive

Click Here For Updates on Machines & Equipment As They Become Available

1,200 Ton Danly Straight Side Press For Sale

Dev — Fri, 22 Aug 2014 19:16:13 +0000

1,200 Ton Danly Straight Side Press For Sale

Tonnage: 1,200
Model: E4-1200-66-108
Ram Size: 66″/108″
Ram T-Slot: Yes
Bolster T-Slot: No
SPM: 12
Shut Height: N/A
Ram Adj: 10″
Stroke Length: 10″
Cushion: Yes (2)
Cushion Stroke: 12″
Cushion Tonnage: 160
Note: Ram leveling issue

Click Here For Updates on Machines & Equipment As They Become Available

1,500 Ton Williams and White Gib Guided Hydraulic Press

Dev — Tue, 30 Apr 2013 17:52:59 +0000

1,500 Ton Williams and White Gib Guided Hydraulic Press

Serial Number – C-4580
Model Number – SH-1500-120-84
Capacity – 1500 Tons
Year – 1987
Tonnage – 1500 Tons
Distance Between Columns – 122″ x 84″
Bed Area – 120″ x 84″
Slide Area – 120″ x 84″
Stroke – 84″
Daylight – 109″
Shut Height – 25″ over bed SDAU
Overall Height – 30′ floor to top of hydraulic unit
Electrical – 480 V/3 PH/60 HZ
Overall Weight – 285,000 #

Operating Speeds:

Fast Close – 925 IPM
Intermediate – 9-90 IPM
Pressing – 3-33 IPM
Fast Close – (Pressing) – 4-45 IPM
Stripping – 9-90 IPM
Fast Open – 650 IPM

Equipped With:

Gib Guided Construction
Oil Reservoir
Hydraulic Tie Rod Nuts
Kicked Cylinder
Main Cylinder

1,000 Ton Verson Straight Side Press For Sale

Dev — Sat, 23 Mar 2013 17:26:34 +0000

1,000 Ton Verson Straight Side Press For Sale

Model SE4-1000-144-84
Capacity 1,000 Tons
Bed Area 144″ x 84″
Slide Area 144″ x 84″
Stroke 18″
Slide Adjustment 14″
Shut Height 48″
Speed 13 to 26 SPM
Windows 60″ wide
Equipped with: Air Clutch and Brake, Air Counterbalances

Click Here For Updates on Machines & Equipment As They Become Available

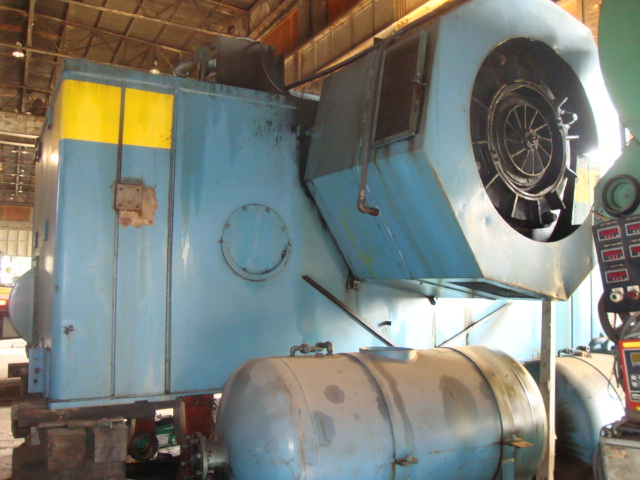

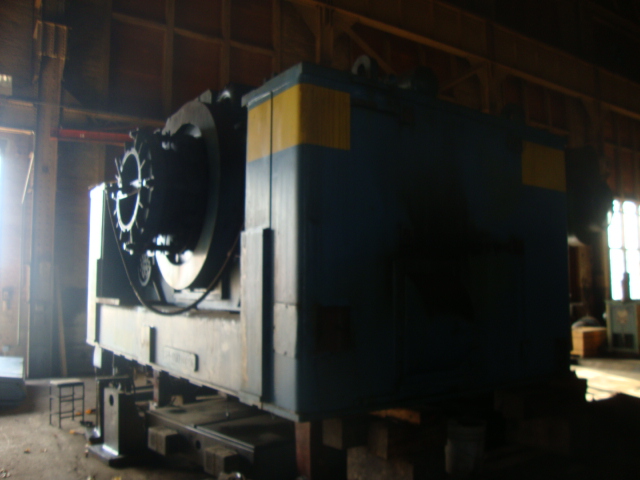

1,000 Ton Bliss Straight Side Press For Sale

Dev — Fri, 08 Mar 2013 11:45:53 +0000

1,000 Ton Bliss Straight Side Press For Sale

Year 1971
Capacity 1,000 Tons
Stroke 20″
Bed Area 144″ x 96″
Speed 14 to 28 SPM Variable Speed
Main Motor 200 HP
Rolling Bolster
Equipped with: Air Clutch and Brake, Air Counterbalances

Click Here For Updates on Machines & Equipment As They Become Available

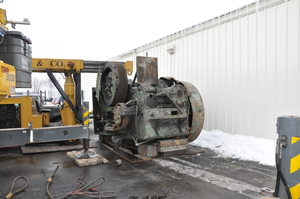

1,000 Ton Ajax

Dev — Fri, 08 Mar 2013 11:45:41 +0000

1,000 Ton Ajax

Tonnage: 1,000T / 907.2 t
Stroke: 10″ / 254mm
Weight 104,000
Year 1943
Last rebuild: 1984
Not under power
Needs lube system update
Casting/ frame is in good shape, never cracked
60 hp motor
Shut Height 22 1/4″
Ram Face 26″x26″
Die Seat 29″x36
Floor Space 108″x105″

1,000 Ton Danly Underdrive Press For Sale

Dev — Fri, 08 Mar 2013 11:45:15 +0000

1,000 Ton Danly Underdrive Press For Sale

Model – U4-1000-180-96
Bed Area – 180″x96″
Stroke – 30″
Shut Height – 72″
Slide Adjustment – 30″
Year – 1955
NOT ACTUAL PHOTO
